Technical index of energy-saving self-baking electrode(electrode paste) of Lanzhou Yangguang Carbon Group Company.

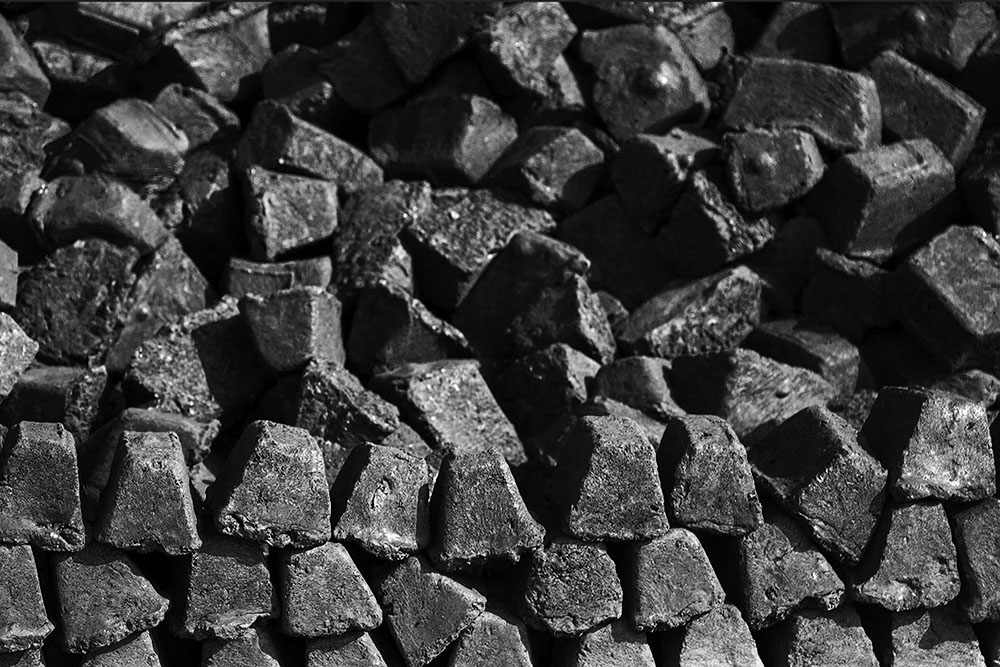

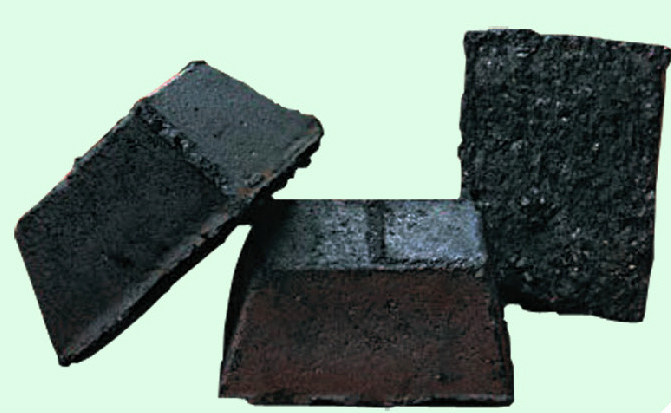

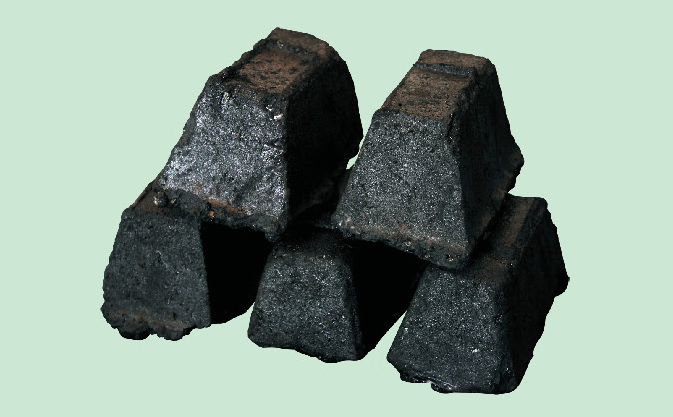

Trapezium Carbon Electrode Paste
Product Description
Technical index of energy-saving self-baking electrode(electrode paste) of Lanzhou Yangguang Carbon Group Company.
| Type
Items
|
Technical index of energy-saving self-baking electrode(electrode paste) for ore-smelting electric furnace | |||||||
| 1# | 2# | 3# | 4# | 5# | 6# | 7# | 8# | |
| Ash (%)
|
≤3.0 | ≤3.5 | ≤4.0 | ≤4.5 | ≤5.0 | ≤6.0 | ≤6.5 | ≤7.0 |
| Volatile (%)
|
9-15 | 9-15 | 9-15 | 9-15 | 9-15 | 9-15 | 9-15 | 9-15 |
| Compressive Strength
(M pa)
|
≥19 | ≥20 | ≥21 | ≥22 | ≥22 | ≥23 | ≥23 | ≥23 |
| Resistivity
(μΩ.m)
|
≤63 | ≤64 | ≤65 | ≤70 | ≤73 | ≤75 | ≤78 | ≤80 |
| Volume density(g/cm³)
|
≥1.40 | ≥1.40 | ≥1.40 | ≥1.38 | ≥1.38 | ≥1.38 | ≥1.38 | ≥1.38 |
| Size(mm) | Cylinder shape | 1- Diameter500mm,Length500mm; |
| 2- Diameter500mm,Length600mm; | ||
| 3- Diameter500mm,Length800mm; | ||
| Briquette shape | Diameter 80mm*Height 60mm; | |
| Remark | Specifications and size can be done as per customers’ requirement; | |
According to your different type of furnace, we can supply suitable and best electrode paste and services, such as within the fields of nickel iron, ferrochrome, ferrosilicon and calcium carbide etc.
